Core Data

Screen

LCD

Display Type

NV

Nominal Voltage

24/36/48/52/60/72V

Support Mode

0-3/0-5/0-6/0-9

Working Temperature

-20℃—70℃

Screen Size

2.5Inch

Shell Material

Aluminum

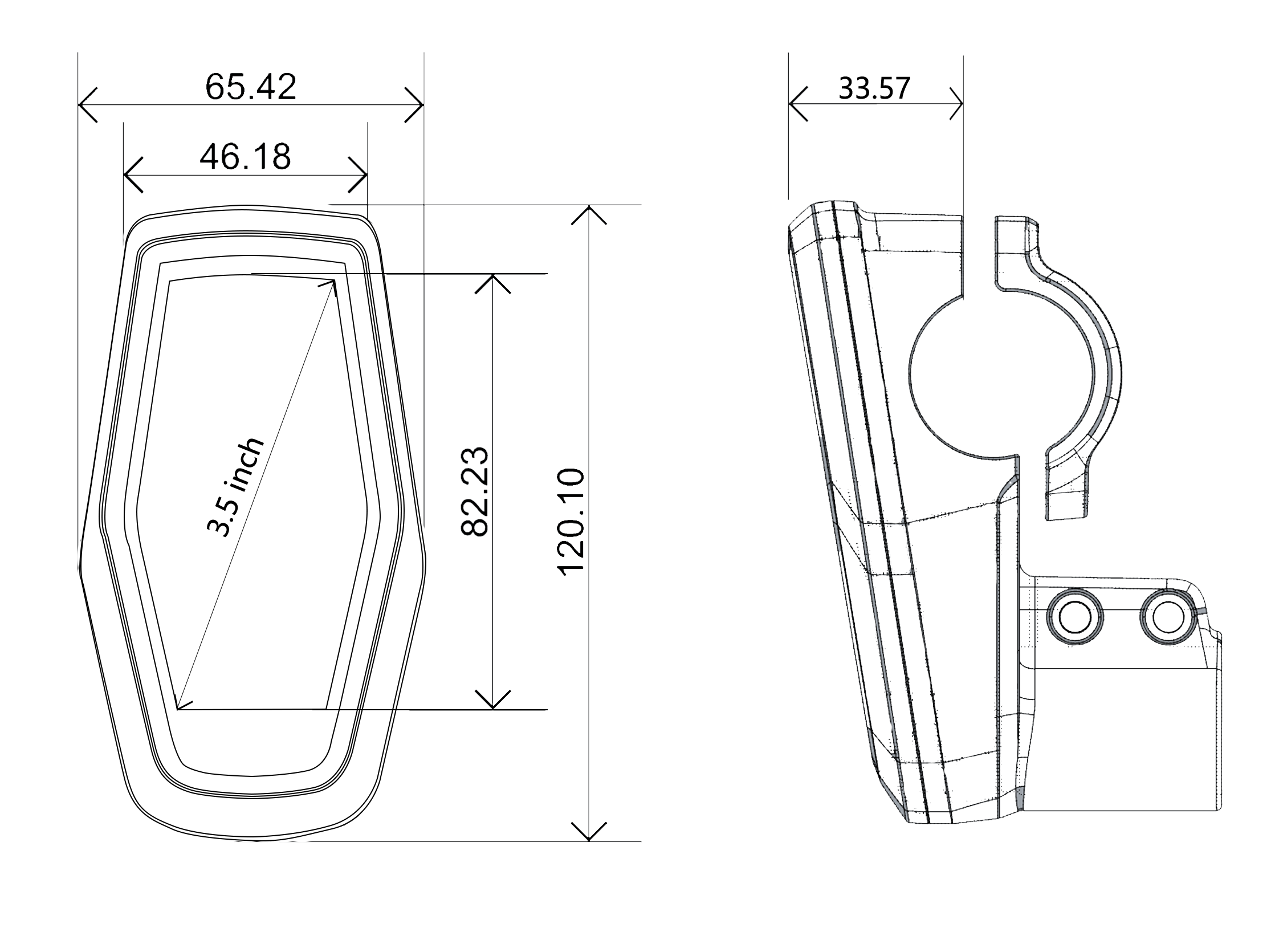

Mounting Parameters

Communication

UART/Canbus

USB

Y

Handlebar For Holding

∅22.2/25.4/31.8mm

Tests＆Ceitifications

IP-Code

IP65

Ceitifications

CE/EN15194  Rohs

Display Information

Current Speed(Km/h)

Y

Max Speed(Km/h)

Y

Average Speed(Km/h)

Y

Duration Single Trip

Y

Distance Single Trip

Y

Total Distance

Y

Reset Distance S.T

Y

Battery Level

Y

Error Code Didplay

Y

Walk Boost

Y

Input Wheel Diameter

Y

Clock

N

Light Sensor

N

Outdoor Temperature

Adjustable

Screen Direction

N

Manual＆Auto Assist

Adjustable
