UKC1


Core Data

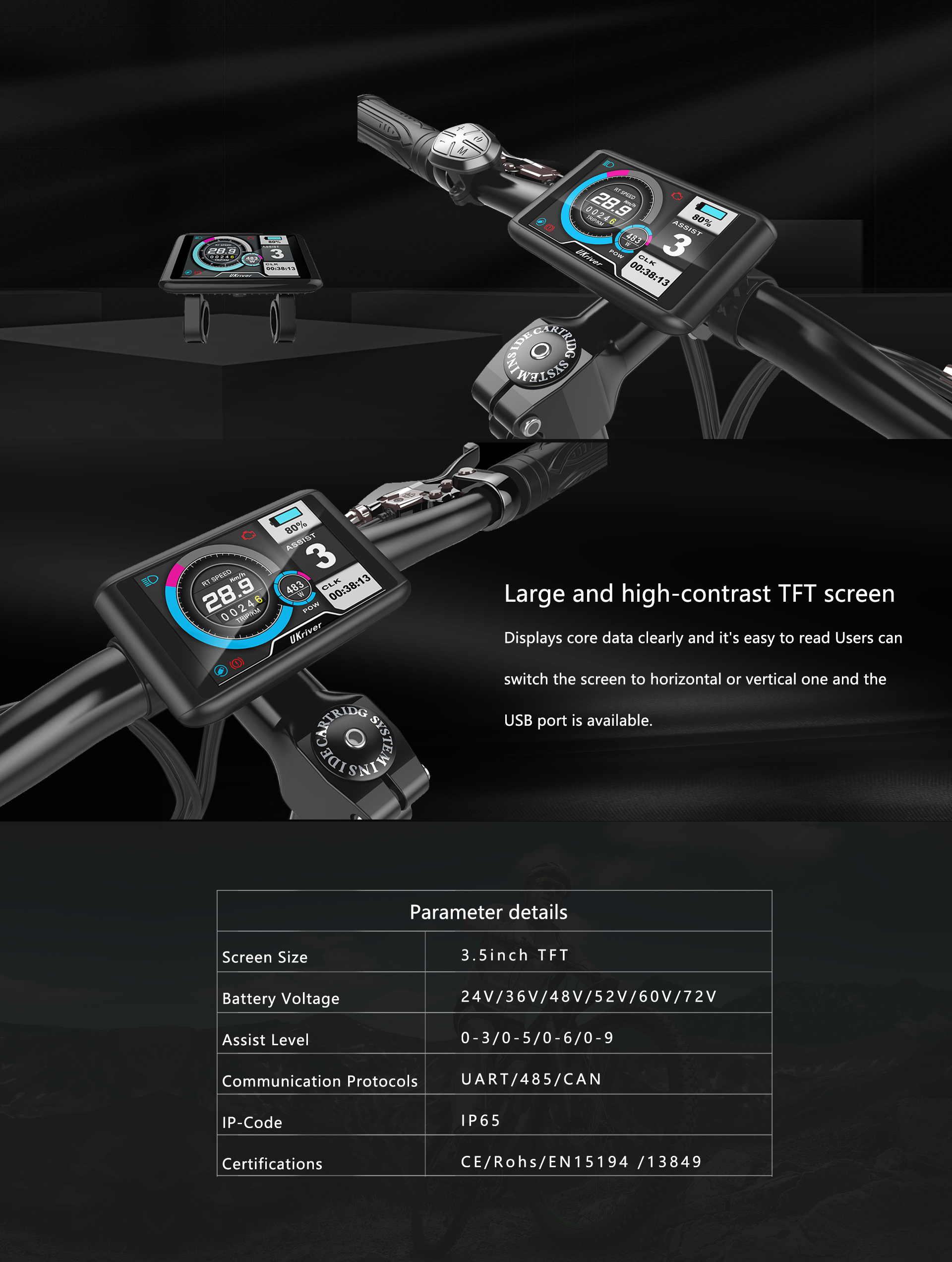

Screen

TFT

Display Type

Dot Matrix LCD

Nominal Voltage

24/36/48/52/60/72V

Support Mode

0-3/0-5/0-6/0-9

Working Temperature

-20℃—70℃

Screen Size

3.5Inch

Mounting Parameters

Communication

UART/Canbus

USB

Y

Handlebar For Holding

∅22.2/25.4/31.8mm

Tests&Ceitifications

IP-Code

IP65

Ceitifications

CE/EN15194  Rohs

Display Information

Current Speed(Km/h)

Y

Max Speed(Km/h)

Y

Average Speed(Km/h)

Y

Duration Single Trip

Y

Duration Single Trip

Y

Distance Single Trip

Y

Total Distance

Y

Reset Distance S.T

Y

Battery Level

Y

Error Code Didplay

Y

Walk Boost

Y

Input Wheel Diameter

Y

Clock

Y

Light Sensor

Adjustable

Outdoor Temperature

Adjustable

Screen Direction

Adjustable

Manual&Auto Assist

Adjustable


Detailed parameters
